HDX-1F20-TR; HDMI 2.0 Optical Extender
HDX-1F20-TR is a high-performance HDMI fiber optical extender, transmitting 4K (4096x2160) at 60Hz up to 300m (984 feet) over one (1) LC multi-mode fiber (OM3).
It offers 3-meter extension for both transmitter and receiver sides, enhancing installation flexibility. It meets HDMI 2.0 standards and transmits uncompressed and transparent video signal.
When connecting with BR-600, the built-in Diagnosis function allows remote monitoring and management for ensuring real-time error detection and reduced downtime.
Combining robust performance, advanced diagnostics, and versatile extension options, the HDX-1F20-TR is an ideal solution for demanding AV installations.
Product
Specifications
Extends up to 4K (4096x2160) at 60Hz.
Supports HDMI 2.0 standards for seamless high-definition audio and video
Transmits data up to 300 meters (984 feet) over one (1) LC multi-mode fiber (OM3)
Extra copper extension available up to 3m on each side (TX/RX)
Supports Audio Return Channel (ARC)
Data security with negligible EMI emission
Diagnosis Link Manager (GUI program) will be provided to manage firmware upgrades and diagnosis features.
Compatible with Power Rack (BR-600), supports up to 8 units of Opticis diagnosis extenders, and offers a one-step feature at one time
Diagnosis features can check the status of products and manage them from a long distance.
Firmware upgradable via USB Type C port
Certified FCC and CE standards for EMI/RFI emission
Works With:

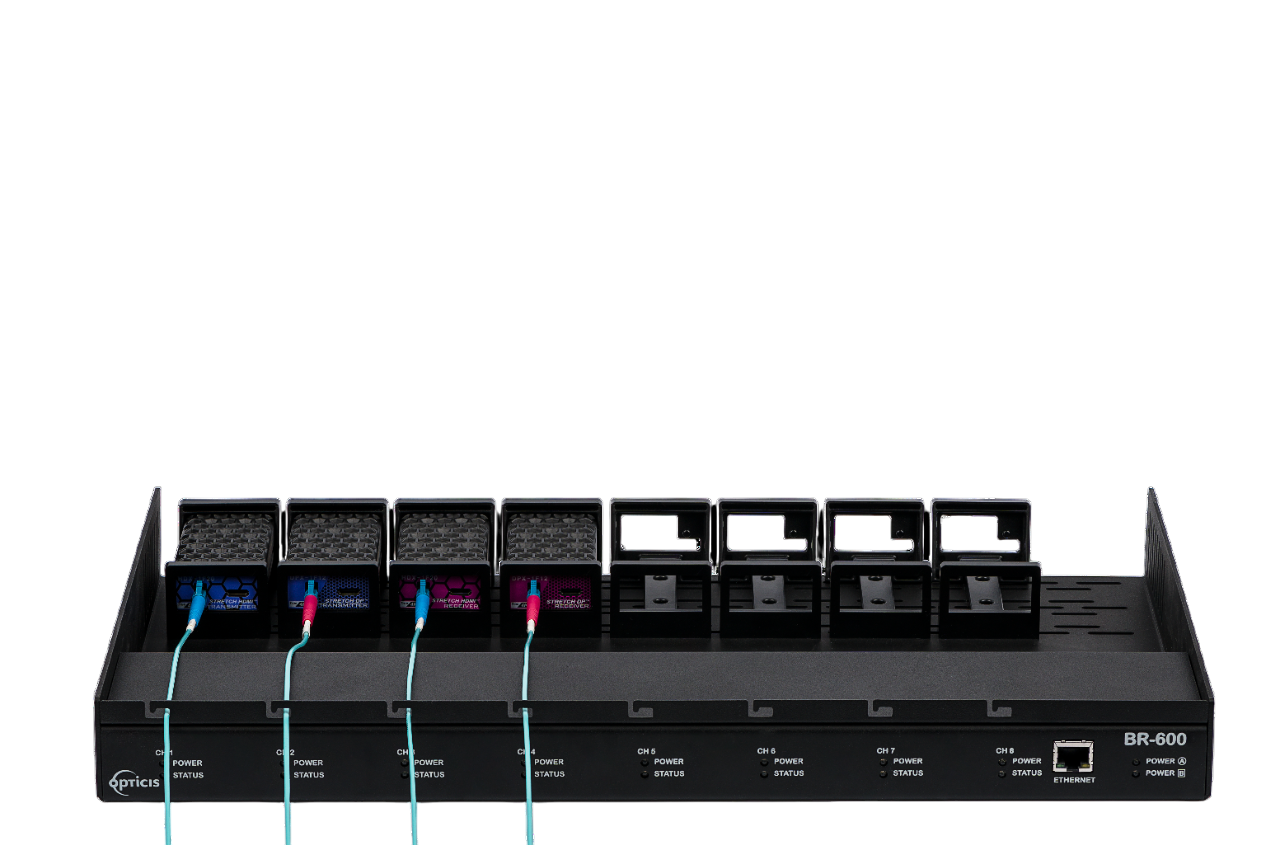

The BR-600 Rack Mount is designed for seamless integration with a variety of devices, ensuring a secure and organized setup. Below is a list of compatible products that can be mounted or used alongside the BR-600, enhancing diagnosis functionality and efficiency in your AV system."
Additional capabilities with BR-600:
Click here to learn more
19” 1RU Power supply frame for diagnosis
Logging and alerting to report issues as they arise
Automatically detection of external events
Cable plug/unplug, automatically detect power changes and check its status
Manage and monitor up to 8 extenders simultaneously
Manipulate multiple channel power states via the main power on/off button
