DisplayPort 1.4 8K Optical Extender (DPFX-1F14-TR) is Now Available

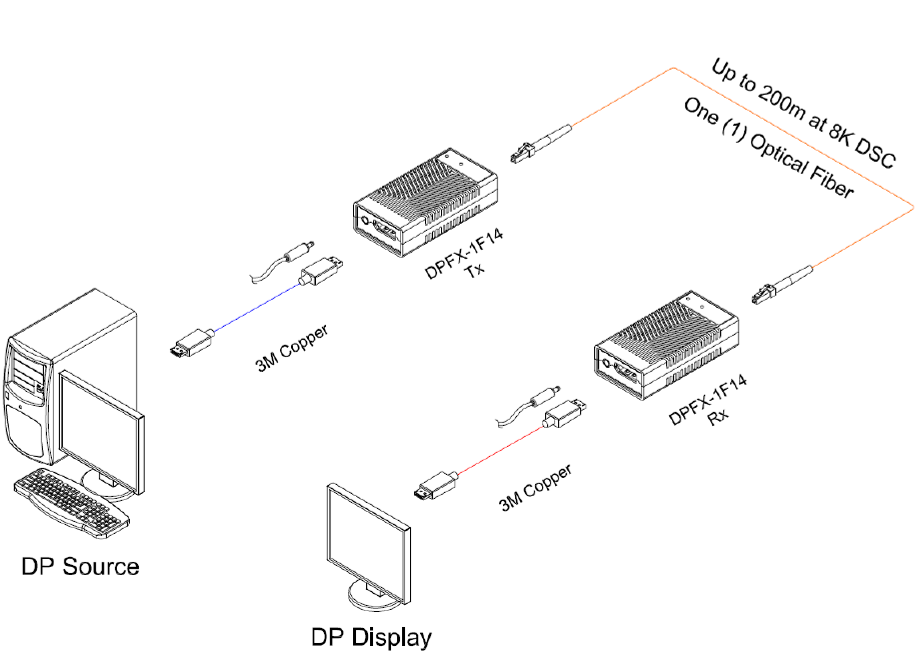

Opticis USA introduces our new 8K optical extender, DPFX-1F14-TR. DisplayPort 1.4 one fiber optical extender with copper extension, DPFX-1F14-TR, extends DisplayPort 1.4 signal up to 200m (656 feet) and transmits up to 8K DSC(7680x4320) at 60Hz over one LC multi-mode fiber. Cutting-edge technology of Opticis reduces limits in installation by providing an option for longer additional extension.
Furthermore, to meet all the customers’ needs, DPFX-1F14-TR is fully interoperable using DPFX-700-TR and DPFX-300-TR. Depending on the circumstances, customers can choose to use a direct connection type module on one side and an additional extension type module on the other.
DPFX-1F14-TR gives slim, light, and easy installation with perfect electrical isolation, but without electrical hazard and interference. It is an operated external DC power adapter.
Additional Specification
• Extends up to 8K DSC(7680x4320) at 60Hz / 4K(3840x2160) at 144Hz
• Transmits DisplayPort 1.4 data up to 200m (656 feet) over one LC multi-mode fiber
• Extra additional extension available up to 3m on each side (TX/RX)
• Offers total data rate 32.4 Gbps (8.1 Gbps per lane)
• Data security with negligible EMI emission
• Certifies FCC and CE standards for EMI/RFI emission
DPFX-1F14-TR transmit uncompressed and transparent data signal even when used with up to 3m (+9 feet) copper cable as an intermediary. This enables installation of the product in the limited spaced area. 2m (+6 feet) copper cable is provided in the shipping group. Experience the uncompressed DisplayPort 1.4 data transmission over a long distance. And it offers a total data rate of 32.4Gbps(8.1Gbps/lane).
