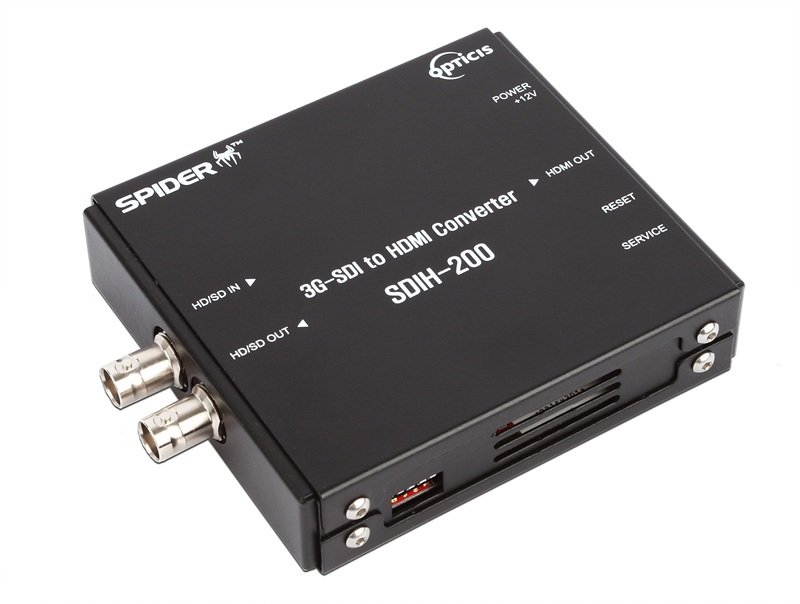

SDIH-200; SDI to HDMI Converter
OPTICIS new mini converter, SDIH-200 convert multi-rate SDs complied with SMPTE standard including SD, HD and 3G-SDI to corresponding HDMI1.3 formats up to 1080p with embedded audio in application for broadcast or a professional video production.
Tech Specs
• Supports multi-rate SDI formats
SMPTE 125M: SD : 601625i (576_ PAL), SD :601525i(486_ NTSC)
SMPTE 296M: HD : 1280720p (60/59.94/50)
SMPTE-274M: HD : 19201080p(30/29.97/25/24/23.98) HD : 19201080i (60/59.94/50)
SMPTE-425M: 3G : 19201080p(60/59.94/50)
• Equipped one (1) 3G-SDI input and Loop-through output
• Equalizes one (1) HDMI1.3 output
• Input status LED
• Input voltage range: +5~24V
• Dimensions (WDH): 105 x 95 x 25mm
• Weight: 0.20Kg
